Using your New Hydraulic Stuffer

New Design Hydraulic Stuffer w/ timer due late 2018

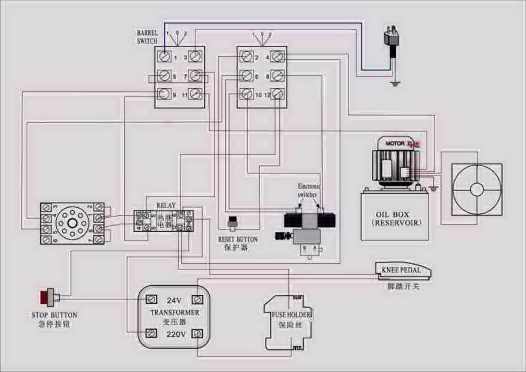

Wiring diagram for timed hydraulic sausage stuffers

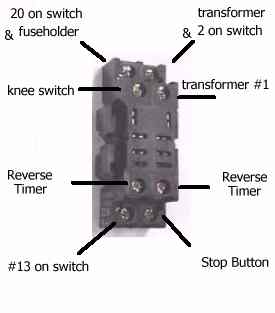

In January of 2014, the Hydraulic stuffers arrived with new HD relays. They have a different wiring pattern than the earlier models. Make note of the different plug holes on the new model. This socket has replacement number 699429.
Be careful when replacing old type with new!
relay socket

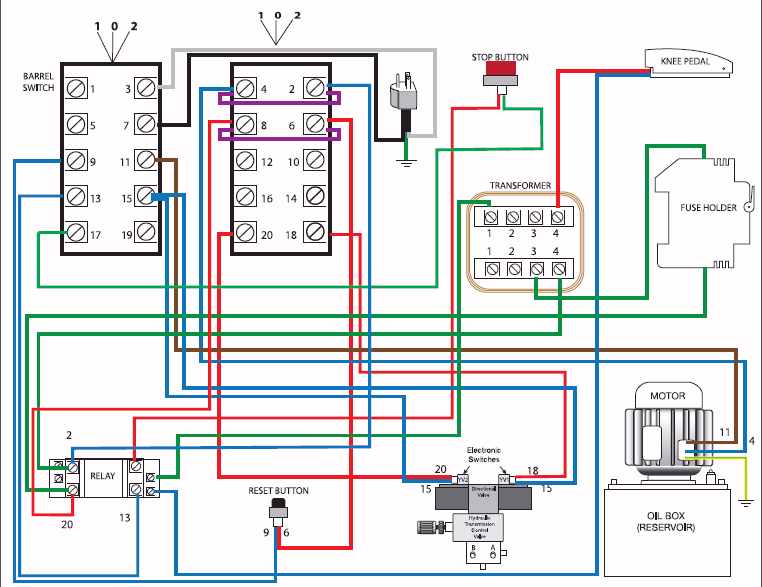

Wiring diagram for Newest Hydraulic Sausage Stuffers w/ Improvements

From February 2014 (There are only 12 screws on the 1-2 switch on this series)
Wiring diagram for Newest hydraulic sausage stuffers

Wiring diagram for Newer Sausage Stuffers w/ Improvements

See change above in 01/2014(There are 20 screws on the 1-2 switch on this series)
Wiring diagram for New hydraulic sausage stuffers



Wiring diagram for Older and other brand Hydraulic Sausage Stuffers

(20 screws on 1-2 switch)
Wiring diagram for hydraulic sausage stuffers

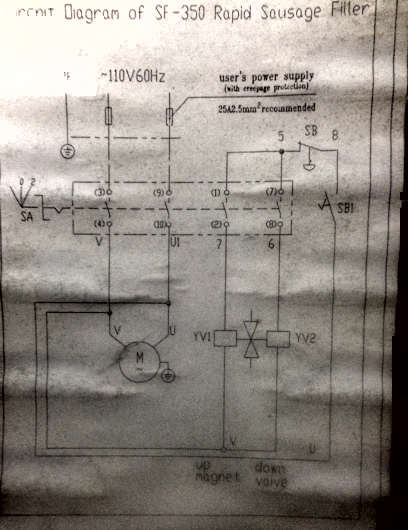

Wiring diagram for stuffers previous to 2010 (about)

Wiring diagram for old hydraulic sausage stuffers

Replacing the motor on your Hydraulic Sausage Stuffer

Check the jumper straps on your replacement motor. The straps must run parallel to the motor shaft.
Wiring WrongWiring Right

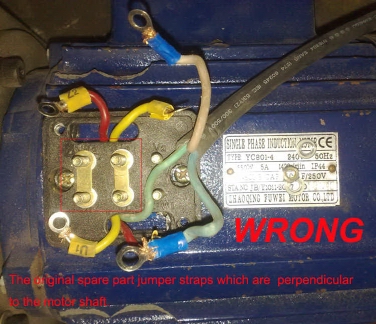

The jumper straps are perpendicular to the motor shaft
WRONG!

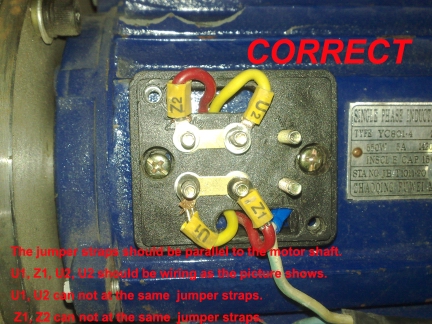

The jumper straps are parallel to the motor shaft
The proper wiring is as shown.
U1 and U2 cannot be on the same jumper strap
Z1 and Z2 cannot be on the same jumper strap.
You can reverse the motor by switching Z1 & Z2




Motor Wiring Instructions
Motor: blue wire connects with U1, brown wire connects with U2, double color wire connected with ground wire.
You may need Internet Explorer to view these videos.


Switch Wiring Instructions:
Electric switch: blue wire connects with electric switch marked 11, brown wire connects with electric switch marked 4, double color wire grounds with housing.
You may need Internet Explorer to view these videos.
